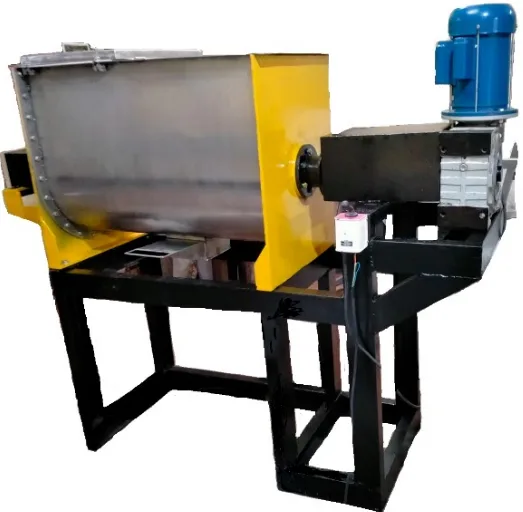

Ribbon Blender 200 LTRS (80 to 100 KG per Batch) STD. Model

215,000.00

100 KG / BATCH TECHNICAL SPECIFICATION



No.2MODEL RB 200 LTRSRIBBON BLENDER STD. MODEL
1TOTAL VOLUME250 Ltrs
2WORKING VOLUME200 Ltrs
3APPLICATIONMIXING
4CAPACITY (APPROX.)100KG/ BATCH   (AS PER 0.6 G/CM3 DENSITY)
5BRIM SIZEWIDTH – 480MM, LENGTH 900MM, HEIGHT – 630MM
6BLENDER OVERALL SIZE IN MM (APPROX.)WIDTH – 750 MM, LENGTH 1550MM, HEIGHT – 1450MM
7BOTTOM CLEARANCE500-600 MM
9M.O.C. OF U SHAPE BODYU SHAPE COVER–2 TO 3 MM THK SS 304,   TOP COVER  2 MM THK = SS304
U SHAPE PATTY  40x10THK  SS 304
BOTH  SIDE END PLATE 10 THK  SS304 WITH SS304 2 MM CLIDDED
ANGLE SUPPORT FOR U SHAPE COVER 40X40X5THK SS 304
M.O.C. OF RIBBON SHAFTRIBBON SHAFT MAIN PIPE Ø65X5THK  SS304
RIBBON SPOKES (PIN) DIA. 16 MM = SS 304
BOTH SIDE SOLID SHAFT DIA 55 = M.S.
RIBBON BLADE PATTY OUTSIDE 50X8THK & INSIDE 25X6THK MM = SS 304
M.O.C. OF  STRUCTUREC CHANNEL  = 100 X 50  M.M.
BOTTOM BASE PLATE 10 THK = M.S.
MOTOR GEAR BOX HIDE FRAME SQ. PIPE 25X2.6 THK X 1.2THK SHEET  = M.S. & CRCA
MOTOR BASE PLATE 12 MM THK = MS
10DRIVE ASLY
aMOTOR3 HP, 1440  RPM, FOOT MOUNTED, SINGLE PHASE
bGEAR BOXGEAR BOX  PHASE 20 RPM
cSPEED20 RPM FIX SPEED
dBIG SPROCKET4 INCH
eSMALL SPROCKET3 INCH
fSTUFFING BOX OR UCF BEARING2 NOS M.S.
gPLUMMER BLOCKSNC 511  ( 2 NOS)
11INLETTOP DOOR
12OUTLETSLIDDING FLAP
13VOLTAGE215V AC, 1 PHASE
14MACHINE TOTAL WEIGHT (APPROX)160
15CONTROL PANEL1REVERSE FORWARD SWITCH
*Price/ Machine Rs. 2,15,0,00/-RS. TWO LAKHS FIFTEEN THOUSAND ONLY



OPTIONAL EXTRA



1) VFD  = RS. 16000 /-  (VARIABLE FREQUENCY DRIVE)

Add to Wishlist
Add to Wishlist
Trust Badge Image

Description

The Ribbon Blender 200 LTRS (STD. Model) is a powerful and efficient industrial mixing machine designed for mixing dry powders, granules, and other bulk materials. With a working volume of 200 liters and a capacity of up to 100 kg per batch (as per 0.6 g/cm³ density), this blender is ideal for various industrial applications.

Crafted with high-quality SS 304 material, the blender features a U-shaped body and ribbon shaft for thorough mixing. It also includes a sturdy frame made of M.S. and CRCA steel, ensuring long-lasting durability even under heavy use. The motor and gear system are designed for reliable performance, with a fixed speed of 20 RPM to ensure consistent results.

Additional features of the Ribbon Blender include a top inlet door, a sliding flap outlet, and a control panel for easy operation. The machine’s compact design ensures easy installation, while the adjustable bottom clearance of 500-600 mm adds versatility.

The Ribbon Blender 200 LTRS is priced at ₹2,15,000 (Rs. Two Lakhs Fifteen Thousand Only), and you can opt for an additional Variable Frequency Drive (VFD) for ₹16,000.

For more details or to place an order, contact us at +91 8308665243.

Read our terms and conditions before buying.
