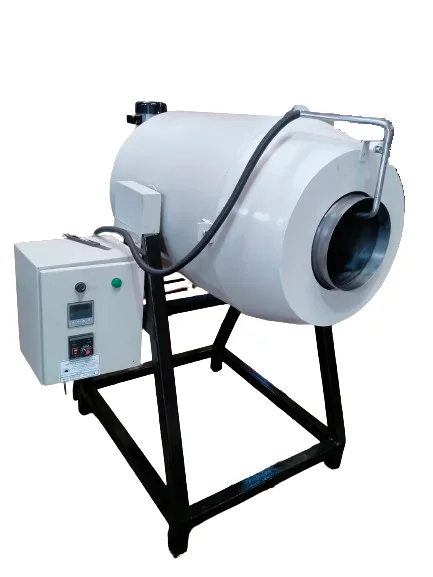

ROTARY ROASTER MACHINE 150 LTRS STD. MODEL -30 TO 35 KG / B ATCH -ELECTRIC OR GAS MODEL

155,000.00

30 TO 35 KG/BATCH (RR150LTRS WITH INSULATION)



NO.1 MODEL 150 LTRS STD. MODEL
1 APPLICATION DRY-FRUITS, SPICES , GRAINS &  SEEDS
2 TOTAL VOLUME 150 LTRS.
3 USABLE VOLUME 50 LTRS.
4 DRUM INSIDE SIZE 540 DIAMETER X 650 LONG (MM.) + CONE
5 OVERALL MACHINE SIZE (APPROX) 1400W) X 1500(L) X 2000(H) (MM.) X TILTING HEIGHT =2200MM
6 CAPACITY 30 TO 35 KG/ BATCH @ .6 GRMS/CC BULK DENSITY
7 MOC 1)       STD MODEL – CONTACT PART AND DRUM SS 304 , BODY CRCA PAINTED.
8 HEATING LOAD ELECRIC HEATER /LPG GAS MODEL
9 MAXIMUM TEMP. 150 ̊ C
10 REQUIRED TEMP 130 ̊ C
11 HP REQUIRED 1)       POWER SOURCE – GAS  -5HP

2)       POWER SOURCE – ELECTRIC  (ROASTER =20HP)

12 VOLTAGE 230V /415V AC, 1/3 PHASE
13 ELECTRIC MODEL AUTO TEMPERATURE CONTROL SYSTEM =  YES
14 GAS MODEL AUTO TEMPERATURE CONTROL SYSTEM =  NO (OPTIONAL EXTRA)
15 CONSTRUCTION DRUM 2 MMTHK OUTER BODY 1.6MM THK STRUCTURE 50X1.6 THK SS 202 PIPE.
16 INSULATION 100 MM  ROCKWOOL
17 DRIVE GEAR MOTOR -1 HP, 4 INCH SPROCKET WITH 2.5 INCH SPROCKETS, SIMPEX CHAIN, BEARING BLOCK -1 NO
18 TILTING ARRANGEMENT GEAR TILTING SYSTEMS
19 PRODUCT TURNER FLAP MOUNTED IN DRUM INSIDE. SS 304. (4 NOS.)
20 CONTROL PANEL 1 DIGITAL +VARIABEL SPEED DRIVE
* STD. MODEL ELECTRIC & GAS 1,55,000/-Rs ONE LAKH FIFTY FIVE THOUSAND ONLY



OPTIONAL EXTRA – GAS MODEL AUTOMETIC TEMP. CONTROL SYSTEM RS. 30000/-

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

TERMS AND CONDITIONS OF SALE



1 PRICE Ex-works, VASAI
2 PACKING & FORWARDING AND FREIGHT CHARGES Extra at Actual.
3 PAYMENT 50% with Order & 50% prior to dispatch.
4 DELIVERY Within 3-4 Weeks from the Date of advance.
5 SALES TAXES GST TAXES EXTRA AS APPLICABLE
6 DISPATCH By Road Transport
7 INSURANCE Goods will be dispatched at purchases risk.
8 VALIDITY Offer is open for acceptance within 15 days from the date of offer.
9 WARRANTY All equipment is warranted against defective workmanship for a period of 12 months. Material found detective would be returned on freight-prepaid basis to the supplier’s works. It will be replaced after repair/ replacement on fright to pay basis by the supplier.
10 INSPECTION Inspection of goods shall be arranged at manufactures premises. Visual inspection & performance test for certain equipment’s can be offered at our works prior to dispatch. Customer will have to arrange the raw material at their own cost else Manufactures warranty before dispatch of goods shall have to be accepted.
11 JURISDICTION All disputes are subject to Palghar jurisdiction.
12 MISCELLANEOUS Road Permit/ Way Bill / Any Forms if applicable to be arranged by yourself.
13 INSTALLATION Extra (If required)
14 OUR GST NO. 27AUJPP5521A1ZU,  w.e.f. 09/12/2022 (OLD GST NO. 27BFLPP0947N1ZR,  W.E.F. 16/08/2018)
15 IEC AUJPP5521A
16 A.D. CODE 6010006-0000489
17 OUR BANKERS SUN FOOD & PHARMA EQUIPMENTS

STATE BANK OF INDIA.  SAPHALE (EAST) , BRANCH-SAPHALE-401102, A/C NO – 41525548706, RTGS/NEFT/IFS COAD –  SBIN0013822, MICR CODE – 400002287, BRANCH COAD -13822
