ROTARY ROASTER MACHINE 20 LTRS GMP. MODEL -5 TO 7 KG / B ATCH -ELECTRIC OR GAS MODEL

₹78,000.00
Next

ROTARY ROASTER MACHINE 30 LTRS GMP. MODEL -7 TO 8 KG / B ATCH -ELECTRIC OR GAS MODEL

₹95,000.00
Next Product Image
ROTARY ROASTER MACHINE 20 LTRS STD. MODEL -5 TO 7 KG / B ATCH -ELECTRIC OR GAS MODEL
Product image
Product image
Product image

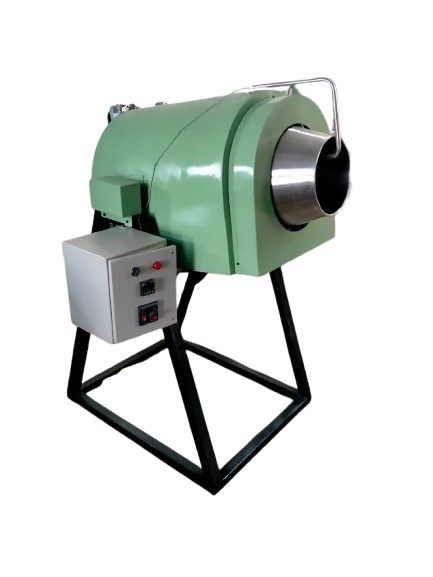

ROTARY ROASTER MACHINE 20 LTRS STD. MODEL -5 TO 7 KG / B ATCH -ELECTRIC OR GAS MODEL

₹70,000.00

1 PRICE Ex-works, VASAI
2 PACKING & FORWARDING AND FREIGHT CHARGES Extra at Actual.
3 PAYMENT 50% with Order & 50% prior to dispatch.
4 DELIVERY Within 3-4 Weeks from the Date of advance.
5 SALES TAXES GST TAXES EXTRA AS APPLICABLE
6 DISPATCH By Road Transport
7 INSURANCE Goods will be dispatched at purchases risk.
8 VALIDITY Offer is open for acceptance within 15 days from the date of offer.
9 WARRANTY All equipment is warranted against defective workmanship for a period of 12 months. Material found detective would be returned on freight-prepaid basis to the supplier’s works. It will be replaced after repair/ replacement on fright to pay basis by the supplier.
10 INSPECTION Inspection of goods shall be arranged at manufactures premises. Visual inspection & performance test for certain equipment’s can be offered at our works prior to dispatch. Customer will have to arrange the raw material at their own cost else Manufactures warranty before dispatch of goods shall have to be accepted.
11 JURISDICTION All disputes are subject to Palghar jurisdiction.
12 MISCELLANEOUS Road Permit/ Way Bill / Any Forms if applicable to be arranged by yourself.
13 INSTALLATION Extra (If required)
14 OUR GST NO. 27AUJPP5521A1ZU,  w.e.f. 09/12/2022 (OLD GST NO. 27BFLPP0947N1ZR,  W.E.F. 16/08/2018)
15 IEC AUJPP5521A
16 A.D. CODE 6010006-0000489
17 OUR BANKERS SUN FOOD & PHARMA EQUIPMENTS

STATE BANK OF INDIA.  SAPHALE (EAST) , BRANCH-SAPHALE-401102, A/C NO – 41525548706, RTGS/NEFT/IFS COAD –  SBIN0013822, MICR CODE – 400002287, BRANCH COAD -13822



OPTIONAL EXTRA – GAS AUTOMETIC TEMP.CTR. SYSTEM RS. 20000/-

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

  • 5 TO 7 KG/BATCH (RR20LTRS WITH INSULATION)
NO.2 MODEL 20 LTRS STD. MODEL
1 APPLICATION PEANUTS, DRY FRUITS , SPICES & MUKVAS ETC.
2 TOTAL VOLUME 20 LTRS.
3 USABLE VOLUME 8 LTRS.
4 DRUM INSIDE SIZE 300 DIAMETER X 410 LONG (MM.) + CONE
5 OVERALL MACHINE SIZE (APPROX) 910(W) X 1000(L) X 1300 (H) (MM.) X TILTING HEIGHT =1600MM
6 CAPACITY 5 TO 7 KG/ BATCH @ .6 GRMS/CC BULK DENSITY
7 MOC STD MODEL – Contact Part and  Drum SS 304 , Body CRCA Painted.
8 HEATING LOAD ELECTRIC/GAS
9 MAXIMUM TEMP. 150 ̊ C
10 REQUIRED TEMP 130 ̊ C
11 HP REQUIRED 1)       POWER SOURCE – GAS   = 1 HP

2)       POWER SOURCE – ELECTRIC  (ROASTER =5HP)
12 POWER SOURCE ELECTRIC,  SINGLE PHASE
14 VOLTAGE 215V AC, 1 PHASE
15 ELECTRIC MODEL AUTO TEMPERATURE CONTROL SYSTEM =  YES
16 GAS MODEL AUTO TEMPERATURE CONTROL SYSTEM =  NO (OPTIONAL EXTRA)
17 CONSTRUCTION DRUM 1.6MM THK OUTER BODY 1.2MM THK STRUCTURE HEAVY SQ. PIPE & ANGLE.
18 INSULATION 100 MM  ROCKWOOL
19 DRIVE PMDC GEAR MOTOR -180W WITH VARIABLE SPEED DRIVE (VFD), 4INCH SPROCKET WITH 2.5 INCH SPROCKETS, SIMPLEX CHAIN, BEARING BLOCK -1 NO.
20 TILTING ARRANGEMENT FOR DISCHARGE PRODUCT BY HAND TILTING
21 LOADING DIRECT
22 PRODUCT TURNER FLAP MOUNTED IN DRUM INSIDE. SS 304. (4 NOS.)
23 CONTROL PANEL 1 ON/OFF SWITCH, VARIABLE SPEED DRIVE,  HEATER ON/OFF& MOTOR ON/OFF.
* STD MODEL ELECTRICAL/GAS 70,000/-RS SEVENTY THOUSAND ONLY
